Brand Name : Hyundai
Model Number : ZX190W-3
Certification : IOS/CE
Place of Origin : China (Mainland)
MOQ : 1
Price : Call for price
Payment Terms : T/T
Delivery Time : 7-15days
Packaging Details : Container or Shipped by Ro-Ro or Bulk shipment
The Hitachi ZX190W-3 is a 19-ton class wheeled excavator designed for general construction, earthmoving, and utility projects. It offers a balance of performance, fuel efficiency, and ease of operation.
Operating Weight: Approximately 19,700 kg (43,430 lbs)
Engine: Isuzu AI-4HK1X, 4-cylinder diesel
Rated Power: 122 kW (164 HP) @ 2,000 rpm
Bucket Capacity: 0.51 – 1.20 m³
Max Digging Depth: 5.93 m (19.5 ft)
Max Reach: 9.48 m (31.1 ft)
Max Cutting Height: 9.2 m (30.1 ft)
Max Loading Height: 6.4 m (21.0 ft)
Swing Speed: 12.0 rpm
Travel Speed: Up to 35 km/h (21.7 mph)
Fuel Tank Capacity: 280 L (74.0 gal)
Hydraulic Flow: 2 × 210 L/min (55.5 gal/min)
Hydraulic System Pressure: 34.3 MPa (4,974 psi)
![]() |

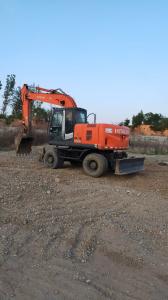

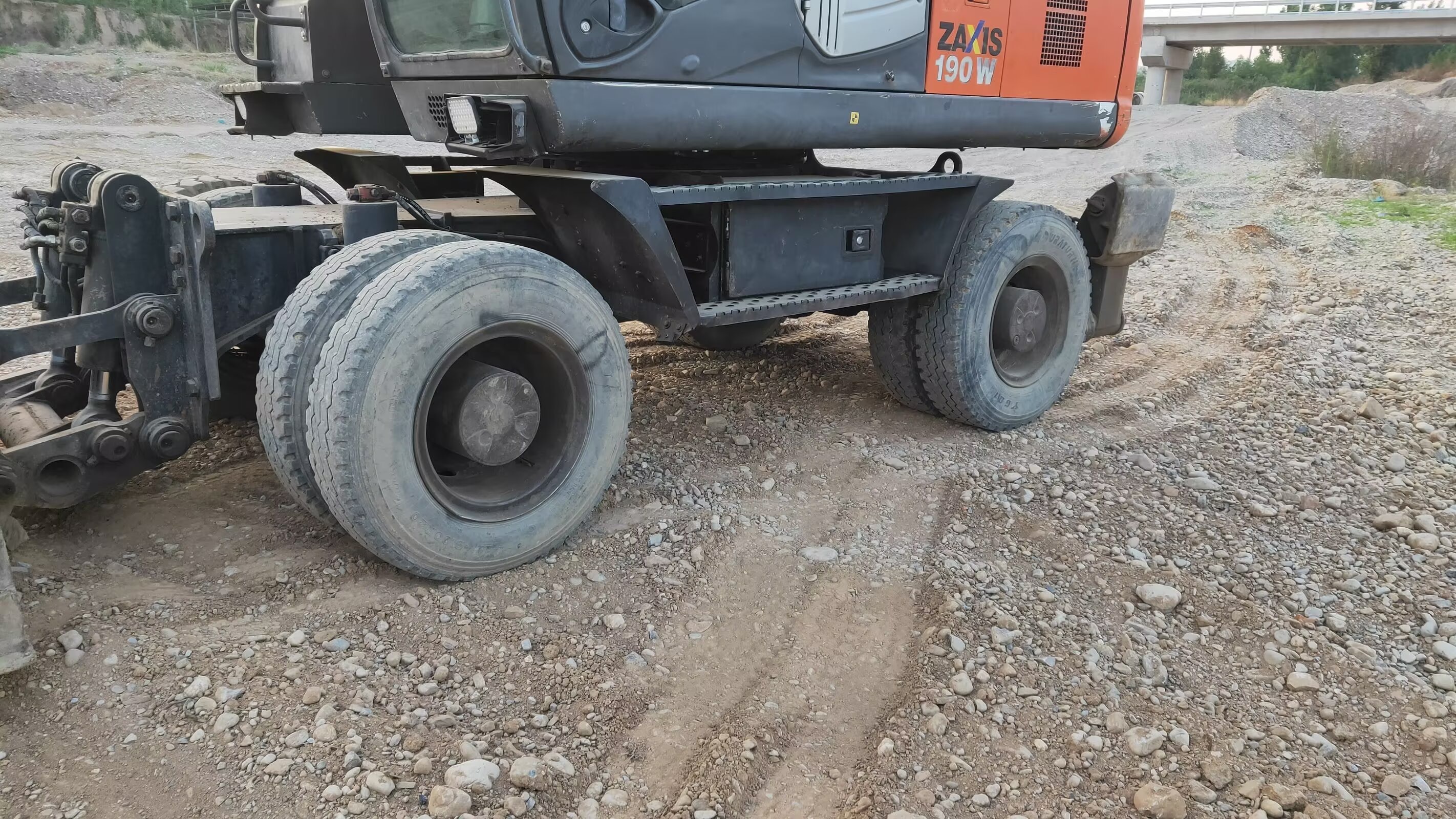

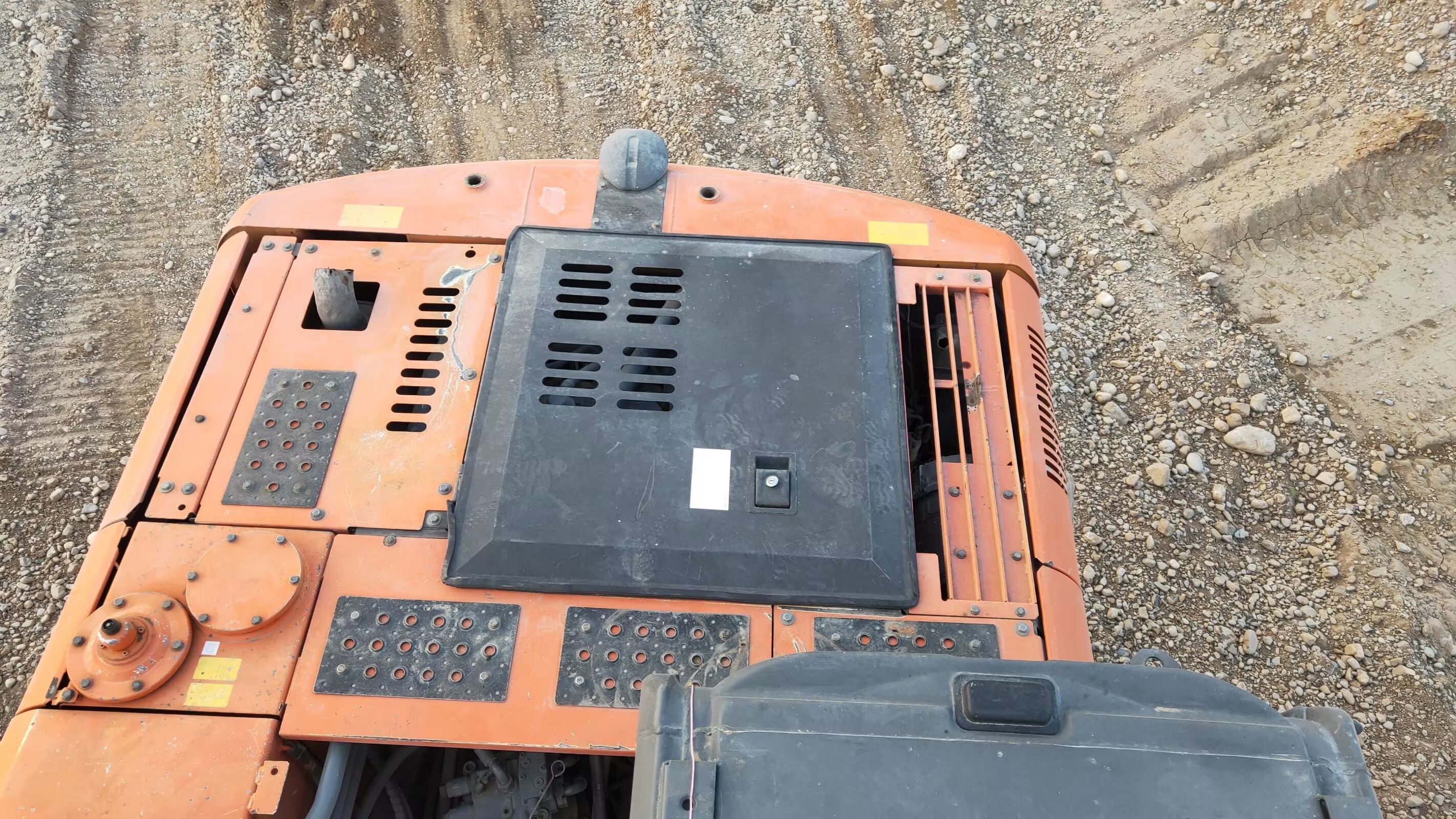

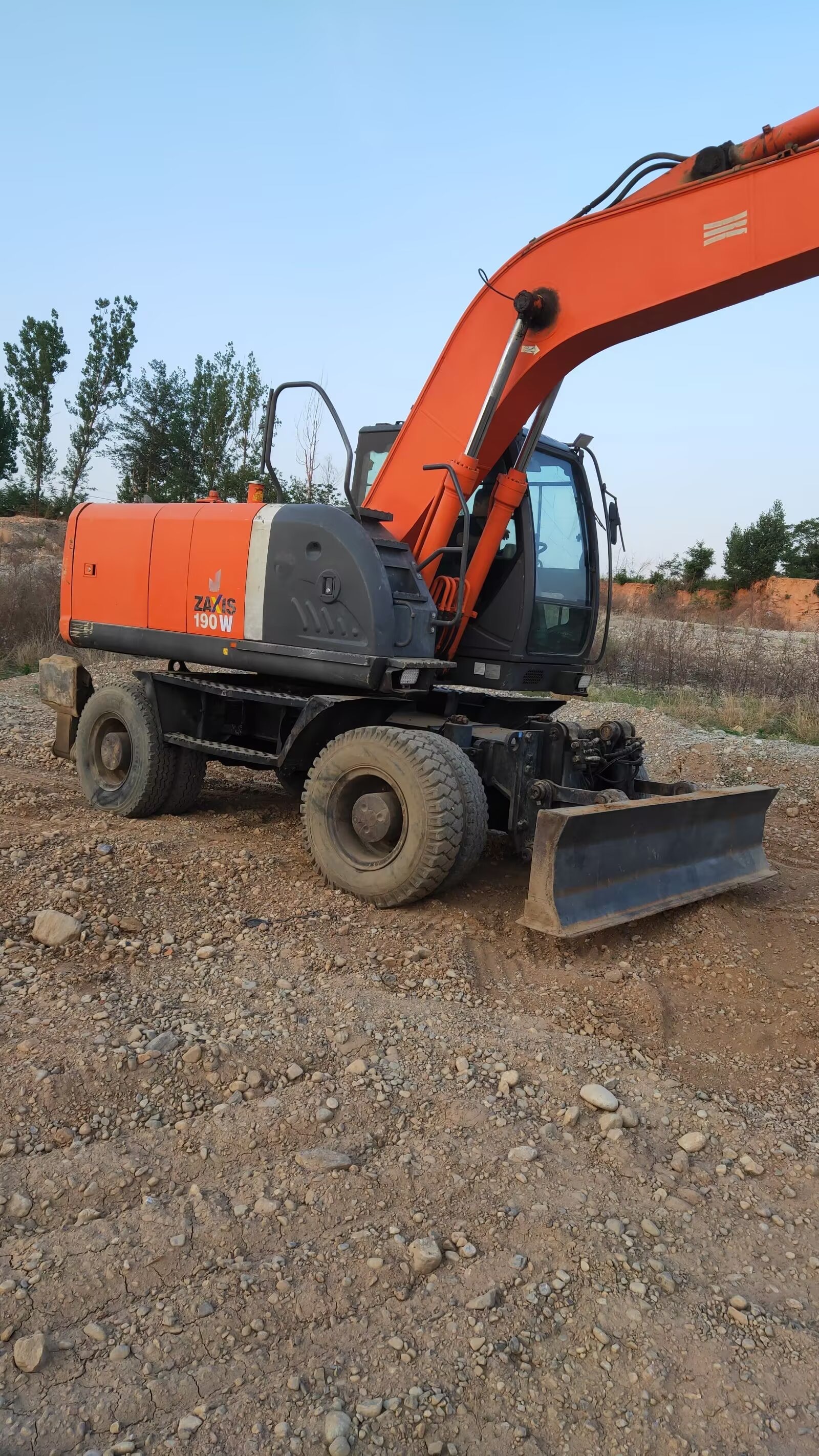

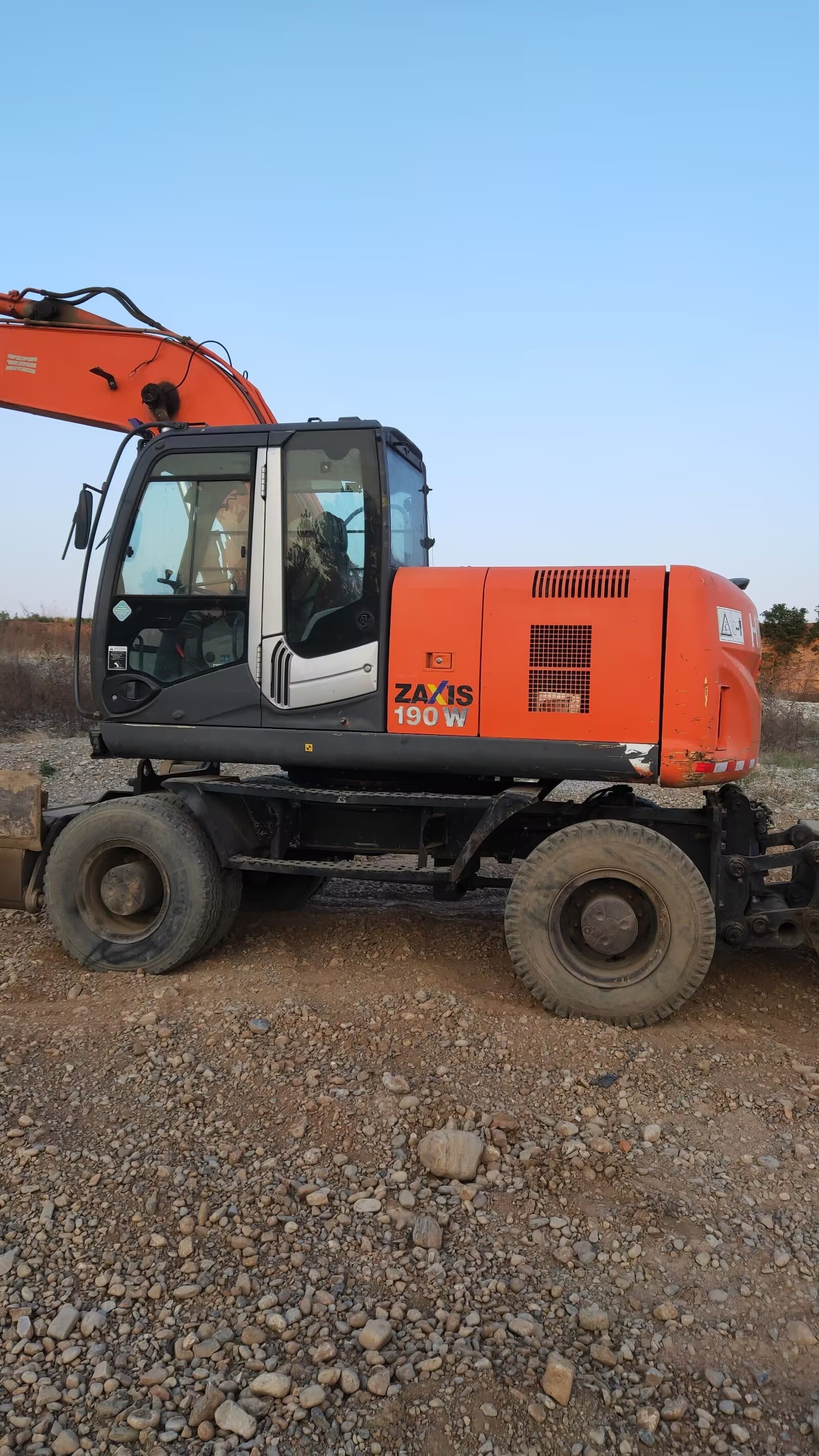

Hitachi ZX190W-3 Wheeled Excavator 19 Ton Class Images |
